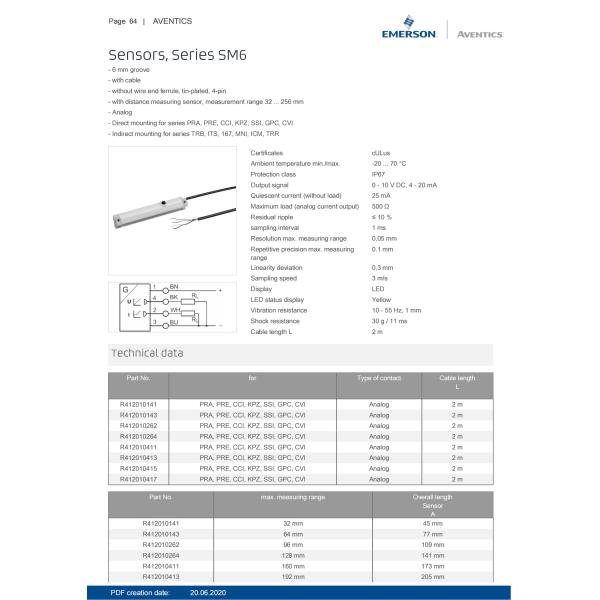

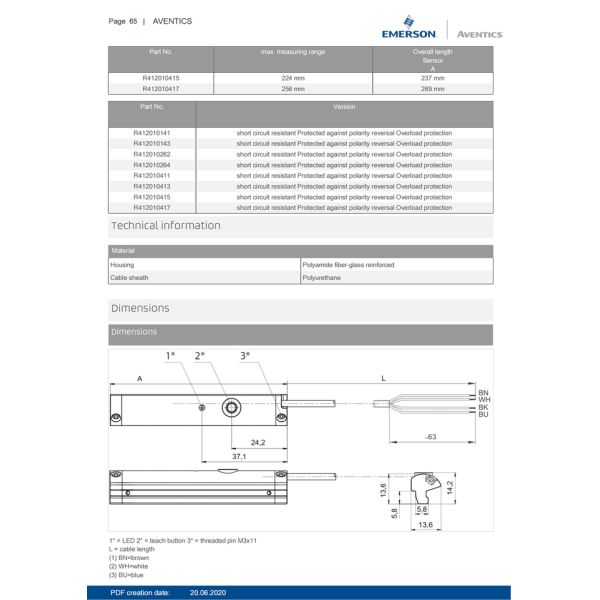

The AVENTICS™ Series SM6 - R412010141 is a top - notch analog distance - measuring sensor. It continuously monitors piston movements within a 32 - mm range. With a 6 - mm groove, it's easy to install, either in a cylinder slot or on a profile. Boasting an IP67 protection class, it resists dust and water, ensuring reliable operation in tough environments. The sensor allows zero - point and measurement - range setting via a teach - in button. It offers high accuracy, linearity, and excellent repeatability with proven hall sensors. Ideal for industrial automation, it enhances system precision and efficiency.

Product Features:

• - 6 mm groove
• - with cable
• - without wire end ferrule, tin-plated, 4-pin
• - with distance measuring sensor, measurement range 32 ... 256 mm
• - Analog - Direct mounting for series PRA, PRE, CCI, KPZ, SSI, GPC, CVI
• - Indirect mounting for series TRB, ITS, 167, MNI, ICM, TRR

Product Details:
